The Machine Part Cleaning System is a high-quality and eco-friendly solution for cleaning machine parts. It is designed to remove dirt, grease, and grime, ensuring optimal performance and longevity.
Fully automatic immersion facility with turn/swivel basket holder
Transfer system with droppable basket holders enables the treatment of several baskets at the same time using different programs
Flexible and cost-effective expansion possible by means of retrofitting of additional basket holders
Use of foaming cleaners or aggressive media possible
Extensive range of equipment variants
Applications
High throughput, high demands on the cleaning and rinsing quality or the cleaning of complex parts are the areas where the multichamber immersion facilities come into use. These facilities also offer the optimum solution for different chemical cleaners, foaming cleaning agents or aggressive media in plastic tanks.
Features
Special sizes according to customer requirements
Automatic charging and discharging device
Ultrasound, media circulation or pressure media circulation device
Additional storage tanks for multistage cleaning, rinsing or, if required, for passivation or preservation
Oil separator, evaporator or complete demin-water recirculation facilities to extend the bath service life
Details
Technology

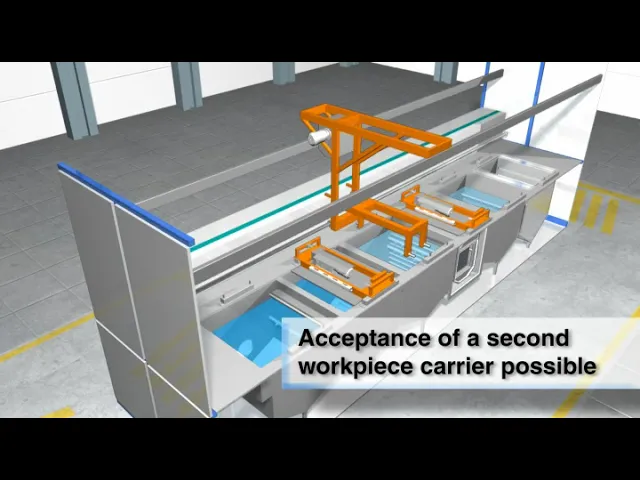

A proven transfer system with droppable basket holders means that the fully automatic multichamber immersion facility allows cost-effective retrofitting of additional basket holders that flexibly increase the throughput performance. Alternatively, additional basket holders can lengthen process times in the individual stations whilst maintaining the same throughput capacity and thus fulfil the demands for higher cleanliness.
Multichamber immersion facilities also offer the largest possible degree of flexibility for goods motion, cleaning agent selection and accessories. Simultaneous swivel/turn and lifting motions can be easily integrated into this facility concept.
The cleaning of parts is effected in baskets secured within a basket holder. A transfer system effects the transport from station to station. Cleaning is preferably carried out in the immersion process with ultrasound or pressure media circulation support, but spray cleaning stations are also feasible. Drying can be effected via body part temperature, hot air and/or vacuum. Bath conditioning is effected as required using filters for particle separation, oil separators to protect the cleaning blades and evaporators or complete demin-water recirculation facilities as part of rinsing bath servicing.
