Pass Through/Conveyor Belt Machine (AP)
The Machine Part Cleaning System is a high-quality and eco-friendly solution for cleaning machine parts. It is designed to remove dirt, grease, and grime, ensuring optimal performance and longevity.
Part-specific customisation of the entire facility (spraying system, transport system, spray tunnel...) for perfect cleaning results

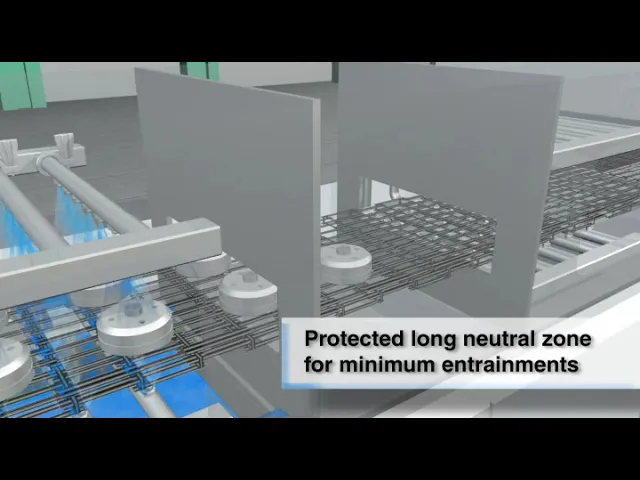

Optimum compartmentalisation of the individual zones and customised neutral zones for minimum carry-over, resulting in long bath service life
Parts transport by means of belt, chain or overhead conveyor
Extensive range of equipment add-ons
Floor tray with integrated leakage warning probe in compliance with the Water Resources Act ensures a high degree of operating safety
Applications
High throughput, high demands on the cleaning and rinsing quality or the cleaning of complex parts are the areas where the multichamber immersion facilities come into use. These facilities also offer the optimum solution for different chemical cleaners, foaming cleaning agents or aggressive media in plastic tanks.
Features
Connection to existing part transport system
Any number of cleaning and rinsing stations
Oil separator, evaporator or complete demin-water recirculation facilities to extend the bath service life
Ultrasound immersion baths
Vacuum drying in cycled operation
Details
Technology
Pass-through spray cleaning facilities for aqueous media are preferably suited for inline part cleaning in manufacturing processes. From simple designs to intermediate cleaning and extending to complex multistage final cleaning facilities, the systems can be individually matched to your particular performance requirement.
The transport of the components is effected likewise in a customised manner either on chain track belts, take-up prisms or in baskets on transport chains. A configuration also is possible that involves overhead conveying devices as well as the take-over of washable pallets from previous processing stages onto the transport system of the cleaning facility.
Apart from the pure spray application immersion lines with ultrasonic cleaning are also available for corresponding component geometries. For clocked operated facilities, movable spray nozzles can be employed via lancing techniques for targeted cleaning of bores. If facilities are charged with baskets or transport pallets, vacuum drying also can be integrated. Bath conditioning is effected as required using filters for particle separation, oil separators to protect the cleaning blades and evaporators or complete demineralisation recirculation facilities as part of rinsing bath care.
Aqueous
Pass-Through Video
Aqueous Pass-Through Process Diagram
